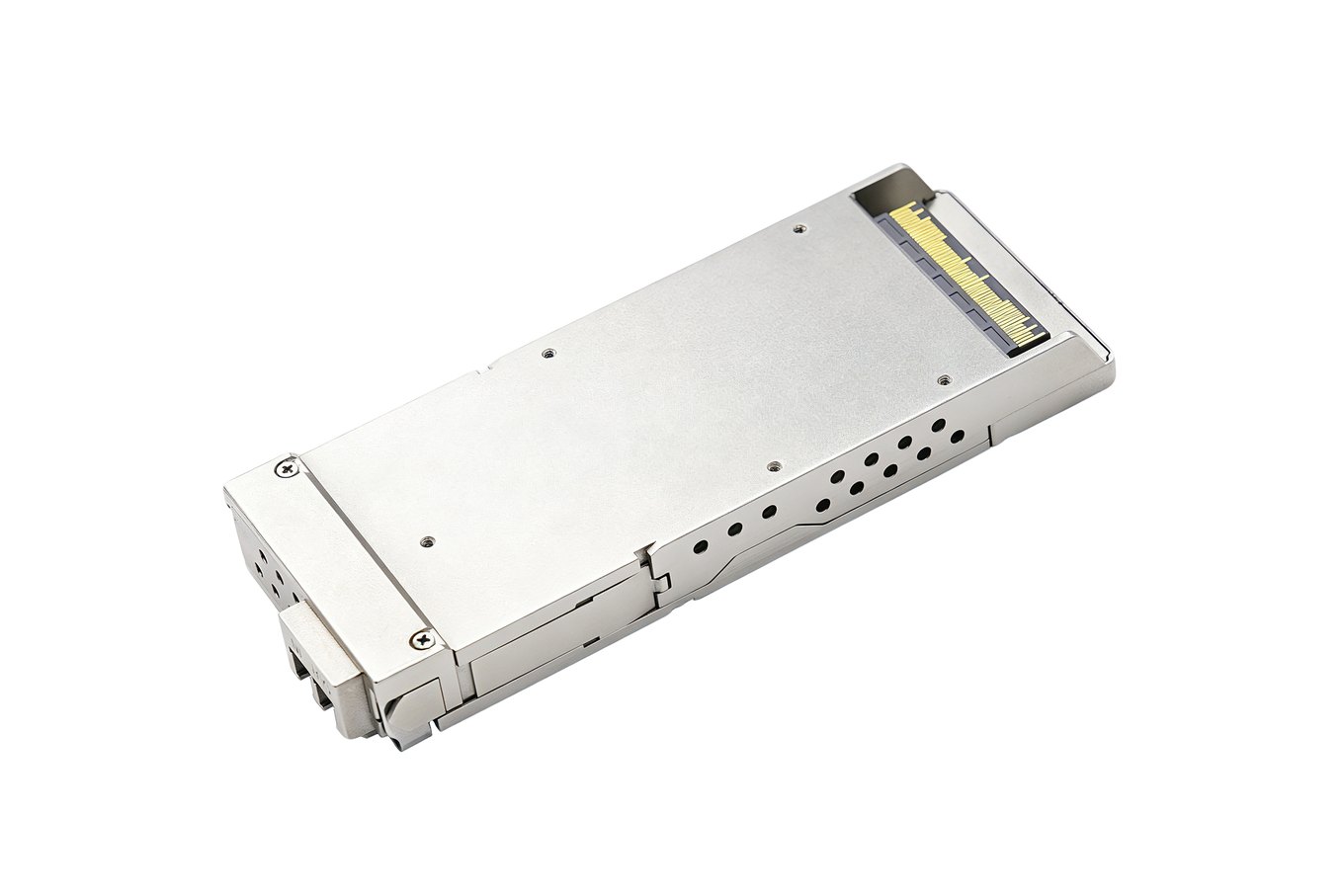

400G/200G CFP2-DCO Multi-Rate DWDM

Specification

Part number

LNS-CFP2-001

Form factor

CFP2

Data rate

400G/200G

Reach

640km @400G / 2000km @200G

Wavelength

C-band tunable (1524.4–1572.1 nm)

Transceiver

DWDM

Modulation

PM-16QAM (400G) / PM-QPSK (200G)

Channel spacing

75 GHz / 100 GHz

Power

Typical 32 W / Max 36 W

Operating temperature

0 °C to 75 °C (case)

Tx output power

-10 ~ +1 dBm

Rx input power

-19 ~ +1 dBm

Power supply

3.3 V single supply

Electrical interface

104-pin hot-pluggable

Standards & protocols

CFP2 MSA Rev 1.0

Connector

LC

Compatibility

Compatible with 200+ vendor devices. Tell us your equipment and we will confirm the exact matching part number.
